AIGR:: ComponentInterface and Protocols (231009)

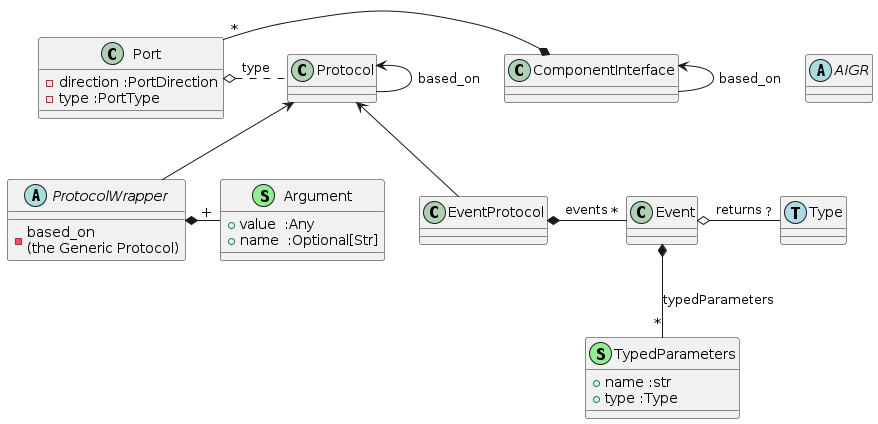

@startuml abstract AIGR class ComponentInterface class Protocol class EventProtocol class Port { - direction :PortDirection - type :PortType } abstract ProtocolWrapper { -based_on\n(the Generic Protocol) } class Argument <<(S,lightgreen)>> { +value :Any +name :Optional[Str] } class TypedParameters <<(S,lightgreen)>> { +name :str +type :Type } class Type <<(T,lightblue)>> '-------------------- ComponentInterface <--- ComponentInterface: based_on Port "*" -* ComponentInterface Protocol <--- Protocol: based_on Protocol <-- EventProtocol Protocol <-- ProtocolWrapper ProtocolWrapper *- "+"Argument EventProtocol *- "*" Event: events Event *-- "*" TypedParameters : typedParameters Event o- "?" Type: returns Port o. Protocol: type @enduml
